Wheel
Carousels
of European Quality

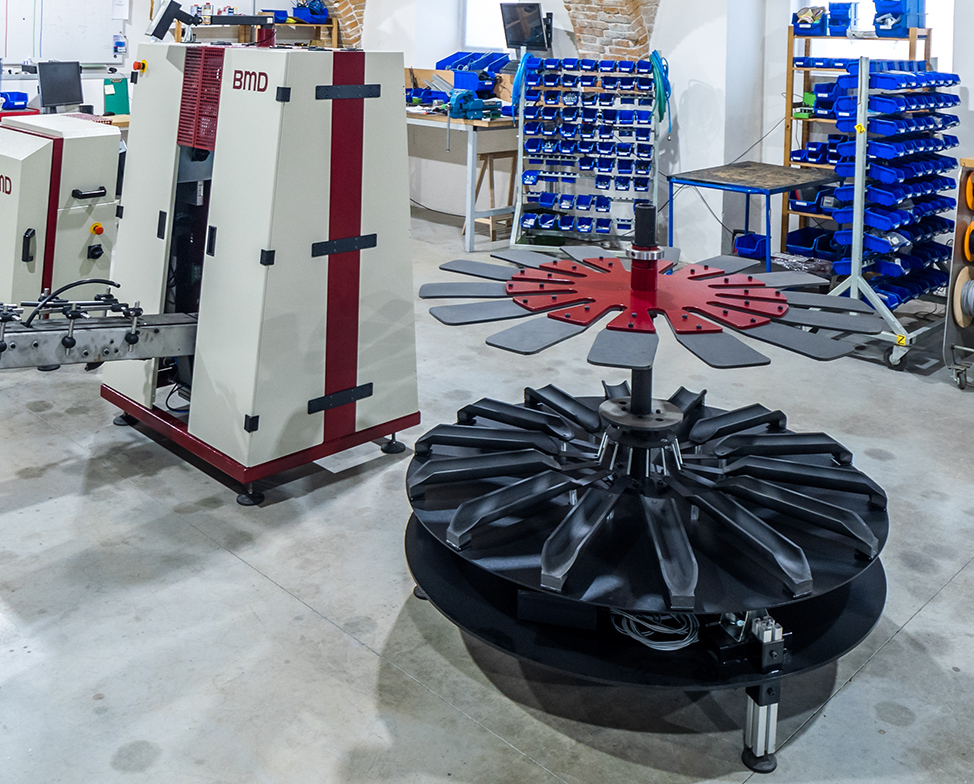

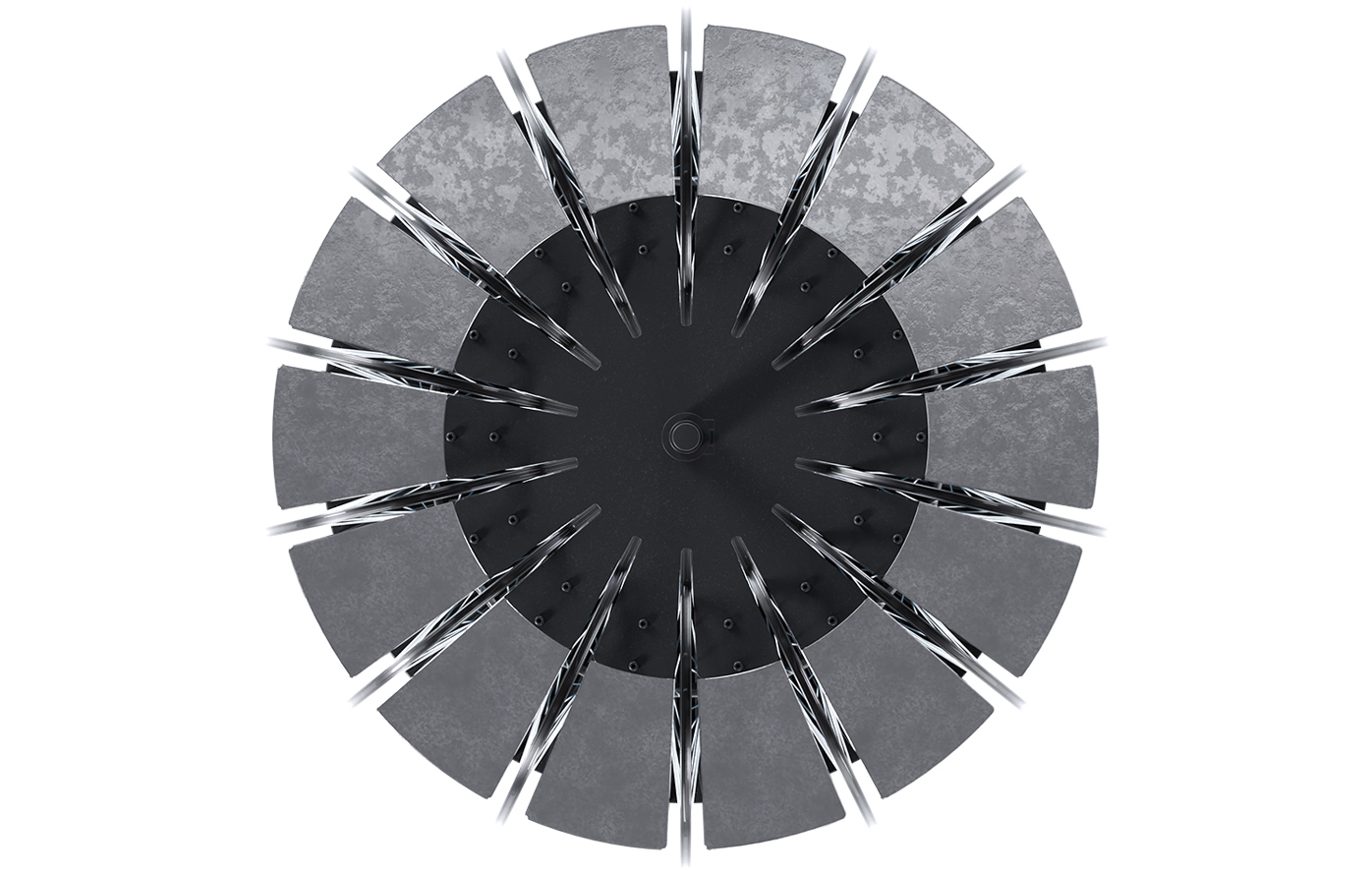

The BMD wheel carousel is the next generation system to store large amounts of wheels in a small volume in or after the production line. By doing this it is possible to regulate the production flow between different machines without interfering overall production time. One carrousel can store the same amount of wheels as a 12 meter long track (approx. 14 wheels), however our solution needs only 1.8 meter in diameter. The wheels are detected and the carousel will move ahead and set a free slot ready to be filled. Using the carousel after the truing machine makes a good storage place for the wheels that are going to be fitted with tyres. The machine is constructed with hard wood or plastic guides to give maximum protection to the wheel surfaces.
aluminium rims,
carbon rims
or e-bike rims
you can trust our proven wheel carousels. Our holders are used both in warehouse and between operations.

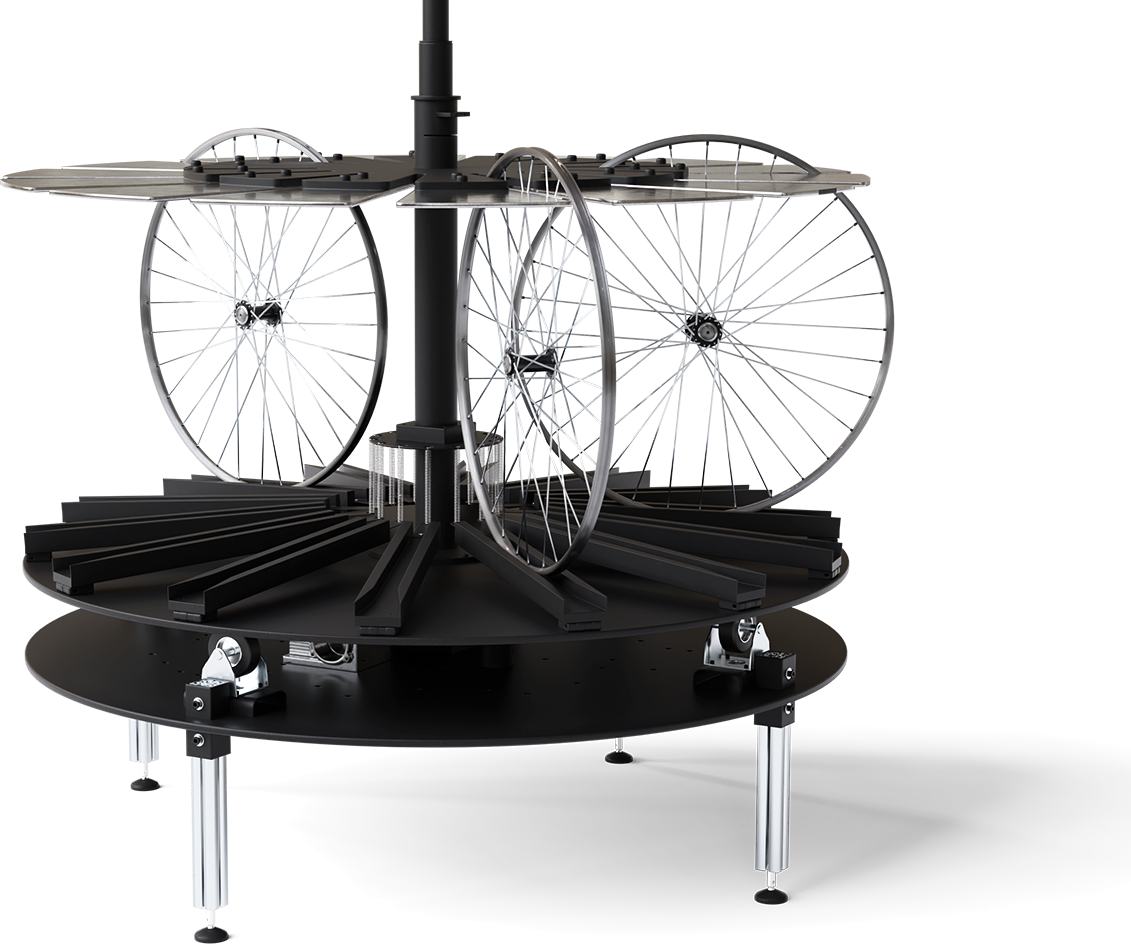

One carrousel can store up to 14 wheels.
1.8 meter in diameter only.
The wheels are detected and the carousel will move ahead and set a free slot ready to be filled.

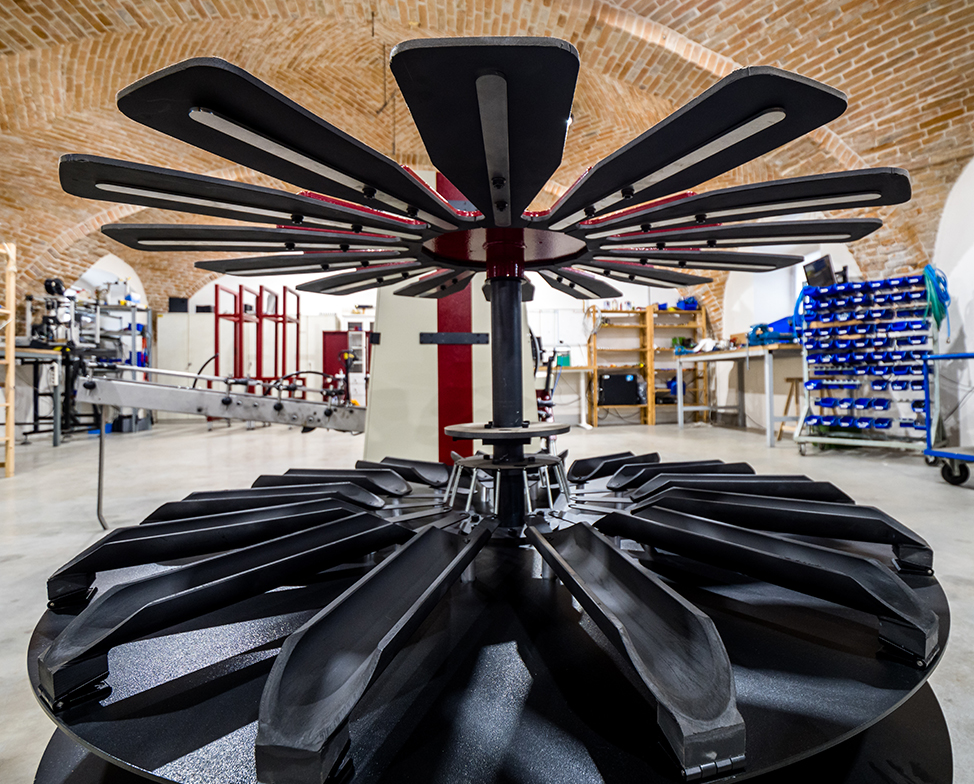

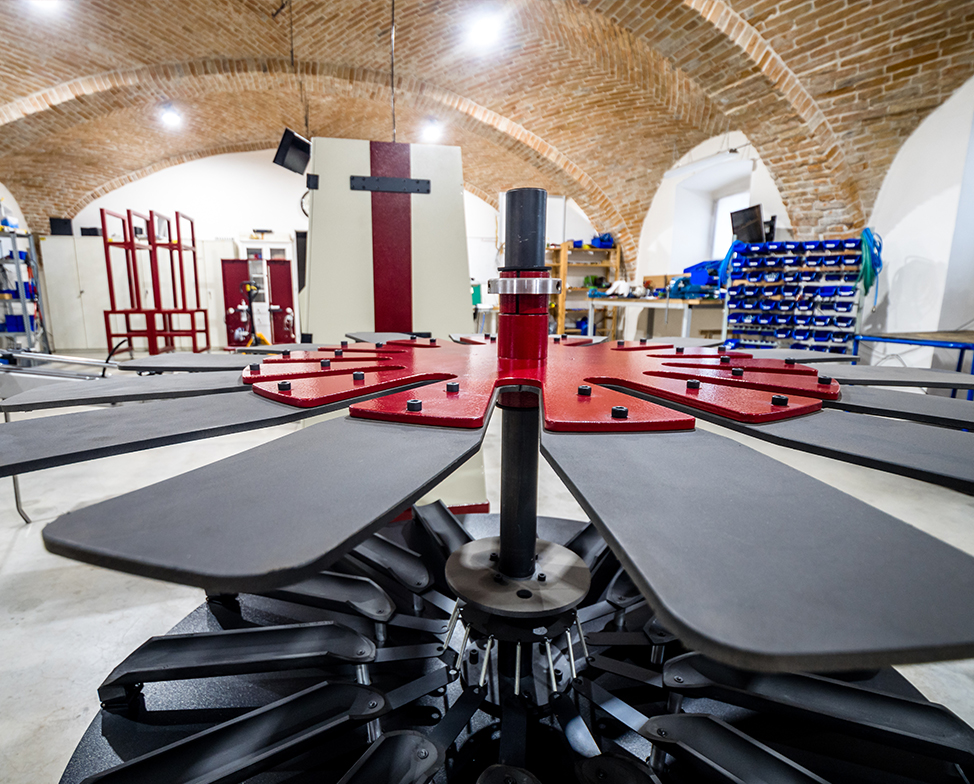

The machine is constructed with hard wood or plastic guides to give maximum protection to the wheel surfaces.
Benefits of Our
Wheel Carousels
Hard wood or plastic guides for maximum protection of the wheel
For storing or regulation of the production flow between different machines
Up to 14 wheels
Diameter 1.8 meter only
Hard wood or plastic guides for maximum protection of the wheel
For storing or regulation of the production flow between different machines
Technical specification
16” to 28” (for 12″ contact us)
1 500 × 1 300 × 1 500 mm
120 kg
